CRS309-1G-8S+IN

Name: CRS309-1G-8S+IN
Brand: Mikrotik
SKU: CRS309-1G-8S+IN
Price: 247 USD
Availability: InStock

247,00 $

Exkl. moms Leverans inom 2-5 dagar

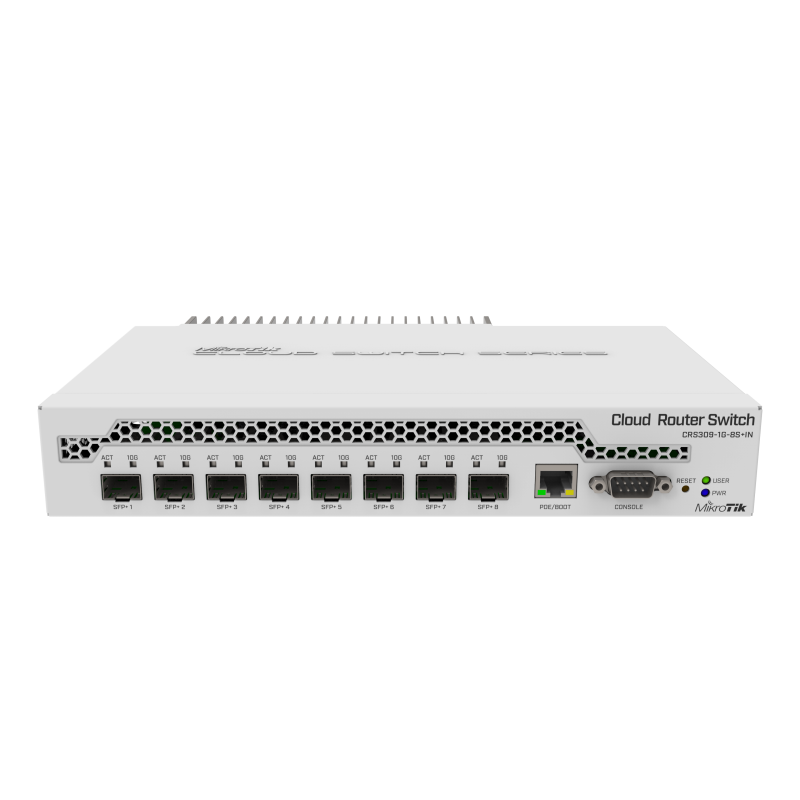

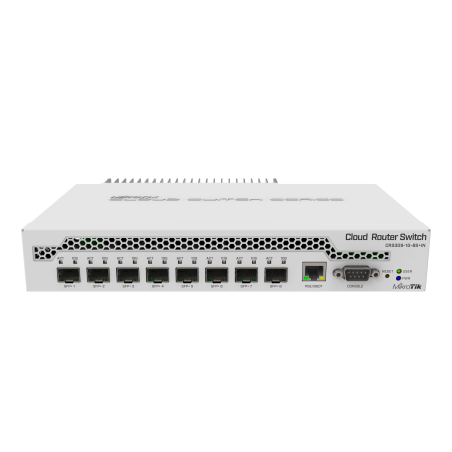

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

Leveransvillkor

Beskrivning
Produktdetaljer

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Specifications

Details
Product code	CRS309-1G-8S+IN
Architecture	ARM 32bit
CPU	98DX8208
CPU core count	2
CPU nominal frequency	800 MHz
Dimensions	272 x 191 x 44 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	512 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	23 W
Max power consumption without attachments	17 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	18-57 V

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	8

Peripherals

Details
Serial console port	RS232

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
